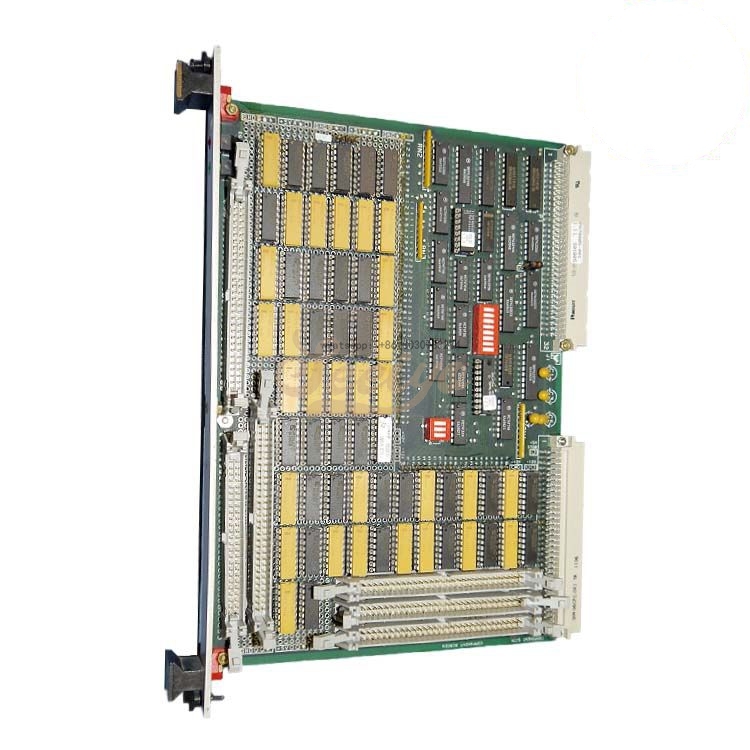

XYCOM XVME-085 Proto VMEbus Non-intelligent Kernel Prototyping VME Module XVME-085/087 Prototyping Modules

The XVME-085 and 087 Prototyping Modules are powerful. yet inexpensive, prototyping modules for use on the VMEbus. You get aU of the

nec-essary circuitry to generate all of the signals required by the VMEbus specification for 8- and 16-bit slaves. By adding application circuitry, you can design your own YMEbus slave module.

The hean of the XVME-085 and 087 Prototyping Modules is the Non-Intelligent Kernel (NIKL).

This is a proven design that Xycom uses in its standard non-intelligent VMEbus J/0 modules.

The modules provide for either a 35.5 inch (XVME·085) or 11.5 inch (XVME-087) grid prototypilg:area suitable for wire wTapping of prototyping components.

Features

• Suppons all signals needed to implemem:

-Timing generation

-Data, address, and control buffers

-VMEbus interrupter suppon

-Jumper/Switch sele<:table address decode circuitry

•  lmplemems Xycom Standard 1/0Architec-ture

- ModuleiO

-Status/control register

- Module StatuS LEOs

• Prototype wiring grid

• Simple applications circuit interface
