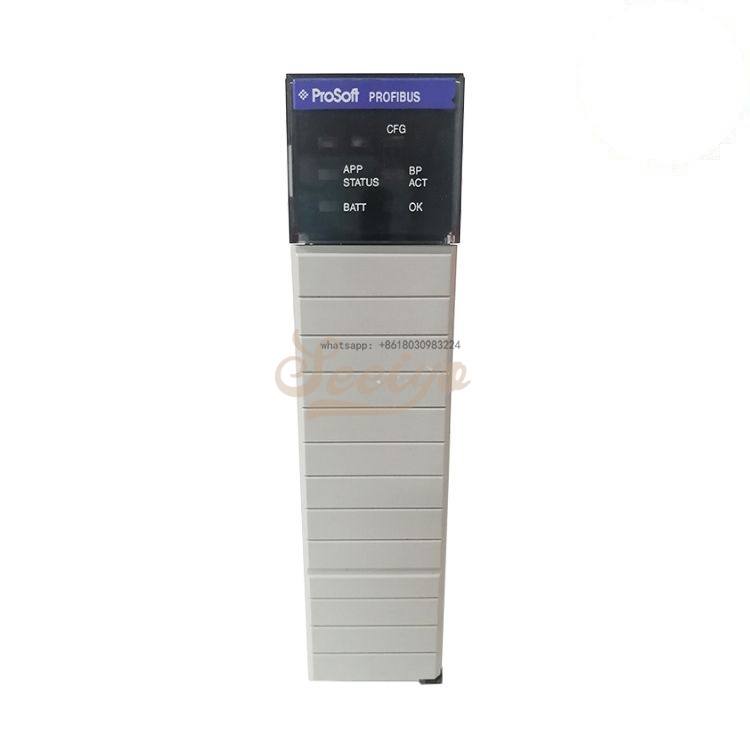

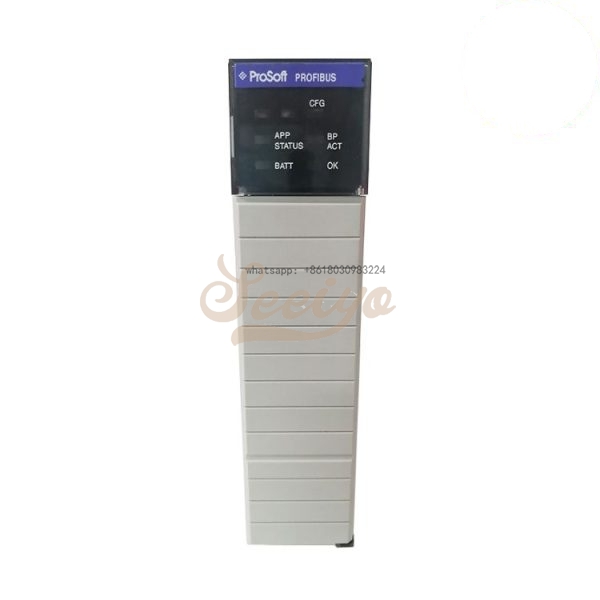

PROSOFT MVI56-PDPMV1 Master Network Interface Module

Description

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

PROSOFT MVI56-PDPMV1 Master Network Interface Module The MVI56 PROFIBUS DP-V1 Master Network Interface Module allows ControlLogix processors to easily communicate with slave devices supporting PROFIBUS DP-V0 and DP-V1 protocol. The module acts as an input/output module between the PROFIBUS network

The module acts as an input/output module between the PROFIBUS network and the ControlLogix processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network. Databases are user-defined and stored in the module to hold the data required by the protocol.

Specifications

Single Slot - 1756 backplane compatible

The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module

Ladder Logic is used for data transfer between module and processor. Sample ladder file (add-on instruction) included.

Local or remote rack

Configurable I/O backplane sizes allow optimal performance for remote rack applications

CIPconnect™ enabled. Module supports communications with ProSoft Configuration Builder and FDT comDTM via Ethernet routing using Rockwell Automation Ethernet interface.
