NI Wave form generator PCI-5421 Circuit board card

Description

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

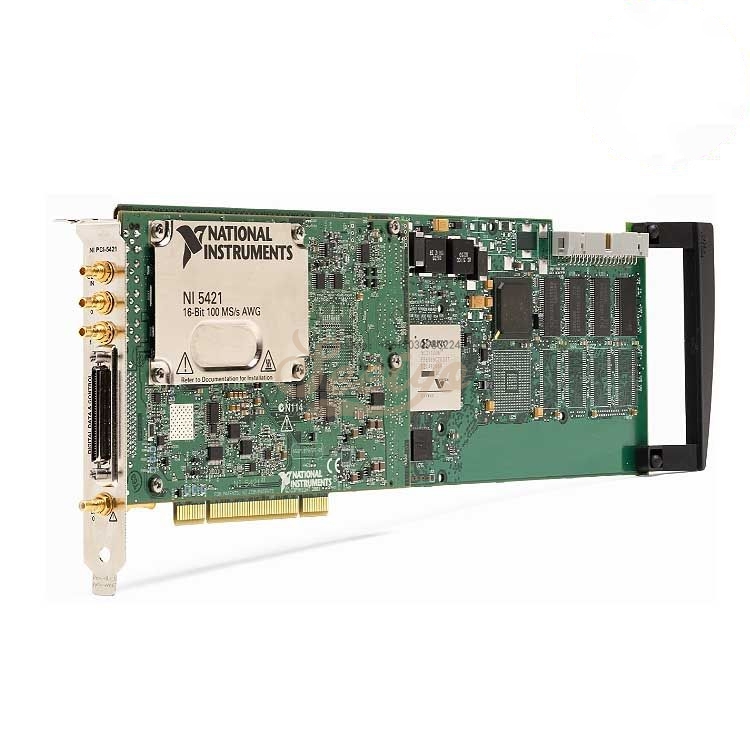

NI  Wave form generator PCI-5421 Circuit board card .The PCI-5421 have 100 MS/s, 16 waveform happens apparatus equipment -- PCI ‑ 5421 user-defined arbitrary waveform can be generated and the standard function, including sine wave, square wave, triangular wave and sawtooth wave. This device can generate arbitrary waveform happen ‑ 6 V ~ + V signal, and USES the direct digital synthesis (DDS) to generate the waveform accurately. PCI 5421 also has advanced synchronization and data stream functions.

This document lists specifications for the NI PXI-5421 arbitrary waveformgenerator. Unless otherwise noted, the following conditions were used foreach specification:

• Analog filter enabled.

• Interpolation set to maximum allowed factor for a given sample rate.

• Signals terminated with 50 Ω.

• Direct path set to 1 Vpk-pk, Low-Gain Amplifier path set to 2 Vpk-pk,and High-Gain Amplifier path set to 12 Vpk-pk.

• Sample clock set to 100 mega samples per second (MS/s).

Typical values describe useful product performance beyond specificationsthat are not covered by warranty and do not include guardbands formeasurement uncertainty or drift. Typical values may not be verified on allunits shipped from the factory. Unless otherwise noted, typical values coverthe expected performance of units over ambient temperature ranges of23 ±5 °C with a 90% confidence level, based on measurements takenduring development or production.

Nominal values (or supplemental information) describe additionalinformation about the product that may be useful, including expectedperformance that is not covered under Specifications or Typical values.Nominal values are not covered by warranty.
