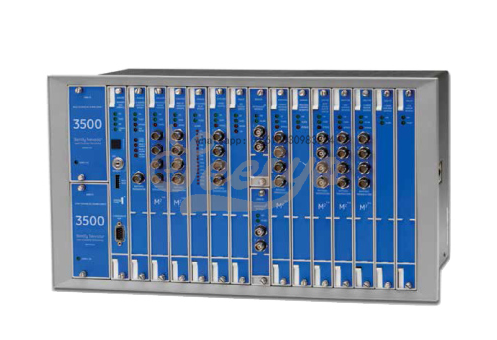

Bently Nevada 3500 Series on-line Machinery Monitoring System

Description

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

• The Bently Nevada 3500 Series Machinery Monitoring System provides continuous, online monitoring suitable for machinery protection and asset condition monitoring applications. It represents our most capable and flexible system in a traditional rack-based design and offers numerous features and advantages not provided in other systems.

• Bently Nevada 3500 Series on-line monitoring and protection system

• Bently Nevada 3500 Series Machinery Monitoring System

Bently Nevada 3500 Series Monitoring System cards are not backward compatible for the 3300 Monitoring systems. If you have any questions or would like information on replacement options, please give us a call.

(3500 monitoring system, mechanical protection device)

The highly modular design of the 3500 system includes:

3500/05 Instrument frame (required)

One or two 3500/15 power supplies (required)

3500/22M transient data interface module or 3500/20 frame interface module (required requirements)

- or two 3500/25 bond phase modules (optional)

3500 Framework Configuration Software (required)

One or more 3500/XX monitor modules (required)

One or more 3500/32 relay modules or 3500/34 triple redundant relay modules (optional)

One or more 3500/92 communication gateway modules (optional)

3500/93, 3500/94 or 3500/95 display device or 3500 operator display software running on a compatible PC (optional)

Internal or external intrinsic safety barriers, or electrical isolation devices for installation in hazardous areas. (Optional)

bently3500 frame instrument system mainly includes:

bently3500/22M with TDI frame interface module

bently 3500/25 key phase module

bently 3500/32 4-channel relay module

bently 3500/33 16-channel relay module

bently 3500/34 TMR relay module

bently 3500/40M Proximitor displacement monitor

bently 3500/42M displacement/velocity acceleration monitoring

bently 3500/44M aerodynamic monitor

bently 3500/45 differential expansion/axial position monitor

bently 3500/46M hydropower monitor

bently 3500/50 RPM module

bently 3500/53 overspeed detection module

bently 3500/60 and 3500/61 temperature monitors

bently 3500/62 Process Variable monitor

bently 3500/64M dynamic pressure monitor

bently 3500/72M piston rod position monitor

bently 3500/77M cylinder pressure monitor

bently 3500/90 communication gateway

bently 3500/92 Communication gateway

bently 3500/06 protective case

bently 3500/08 Fault diagnosis connection panel

bently 3500 internal grating

bently 3500/93 independent display

bently 3500/93 LCD display unit

Bently 3500/94 VGA display device
