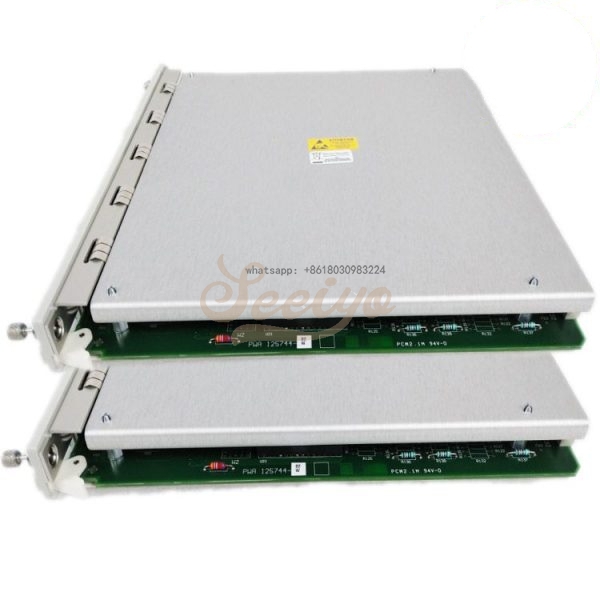

Bently Nevada 3500/60 Temperature Monitor Module 133811-01, 163179-01

Description

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Bently Nevada 3500/60 Temperature Monitor Module 133811-01, 163179-01

Features:

(6) Channels of Temperature Monitoring

Ttemperature Inputs: Resistance Temperature Detector (RTD) and Thermocouple (TC)

Recorder Outputs for each Channel (3500/61)

RTD/TC Non-Isolated or TC Isolated Versions

The GE / Bently Nevada 3500/60 and 3500/61 Series Temperature Monitors Modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.

The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.

When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate operation and to avoid single-point failures.

Brand：BENTLY NEVADA

Model：3500/94M

Part No：

Product Name：VGA Display Monitor Module

Website:www.seeiyo.com

Bently Nevada 3500/60 was a privately held US corporation between 1961 and 2002, during which time it pioneered the eddy-current proximity probe, a sensor that revolutionized the measurement of vibration in high-speed turbomachinery by allowing the direct observation of the rotating shaft. The company also performed significant research in the field of rotordynamics, furthering knowledge of machinery malfunctions such as shaft cracks and fluid-induced instabilities. Its research also helped refine the equations used to describe vibratory behavior in rotordynamic systems.

The 3500TMR configuration performs the monitor voting function by selecting the install function of the MONITOR option. In this way, the TMR TDI continuously compares the output of the three redundant monitors. If the TMR TDI detects that the output of one monitor is not equal to the output of the other two monitors (within a percentage of the configuration), it issues an error indication to the monitor.

Orbit 60 Series Chassis

You can flexibly deploy each chassis option with a public facing side (for rack or panel mounts) and a  utility side (for wiring connections and bulkhead mounts). Insert modules and make all wiring  connections from the utility side. 3500/45 Provisions for the public side of the chassis include status LEDs,  configuration port, Config/Run key, and reset button. Three chassis types are available.

Chassis Types

Mounting Options

l Panel Mount – Mounts to rectangular cutouts in panels and secures to the panel using clamps  supplied with the chassis in 3U Mini*, 3U 19" standard, and 6U 19" standard* configurations. The  6U 19" will fit in the space of a 3500/60 rack.

l Rackmount – Mounts the 3U or 6U chassis on 19-inch EIA rails. Two 3U units or a single 6U* form  factor have been designed to fit within the space of a single 19” rackmount 3500 unit, as a  retrofit.

l Bulkhead - Typically mounts into a protective enclosure fastened to a sub panel in 3U Mini*, 3U  19" standard, and 6U 19" standard* configurations. NEMA 4 and 4X weatherproof housings are  available when required for environmental protection or when purge air is used.
