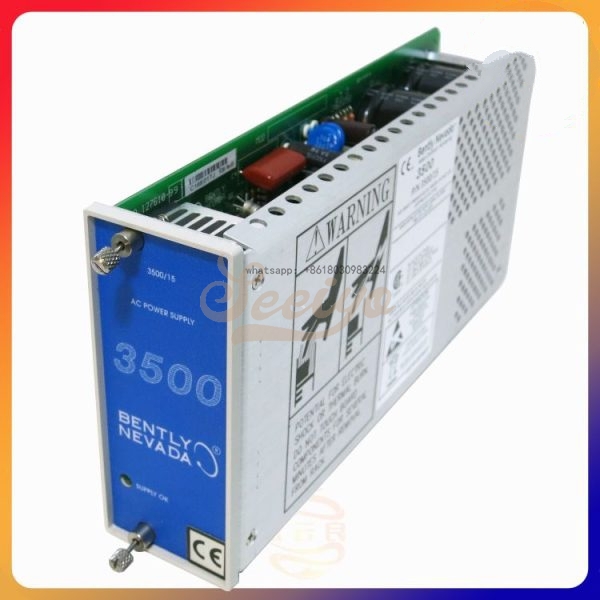

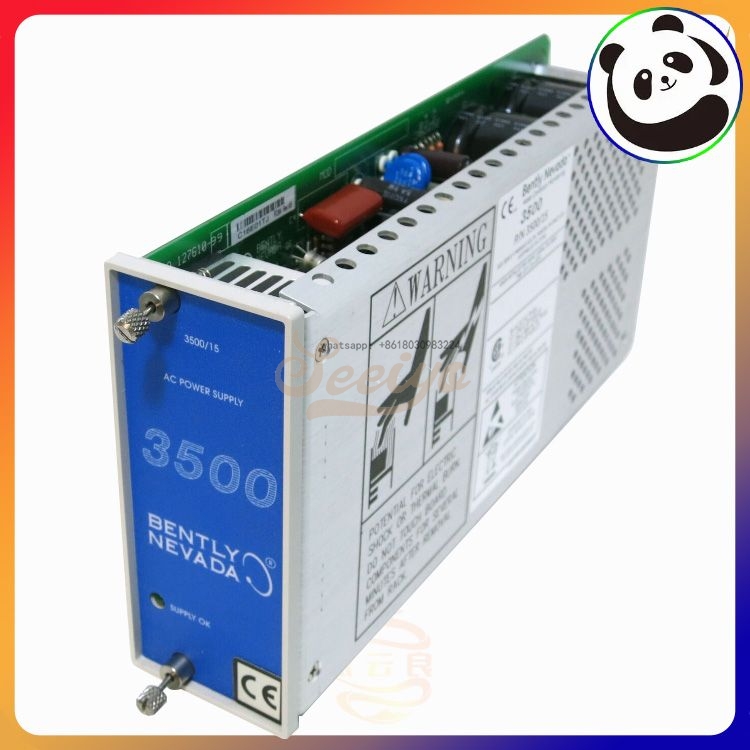

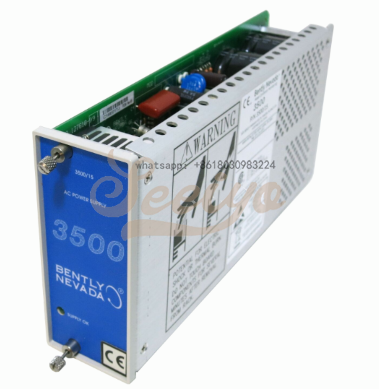

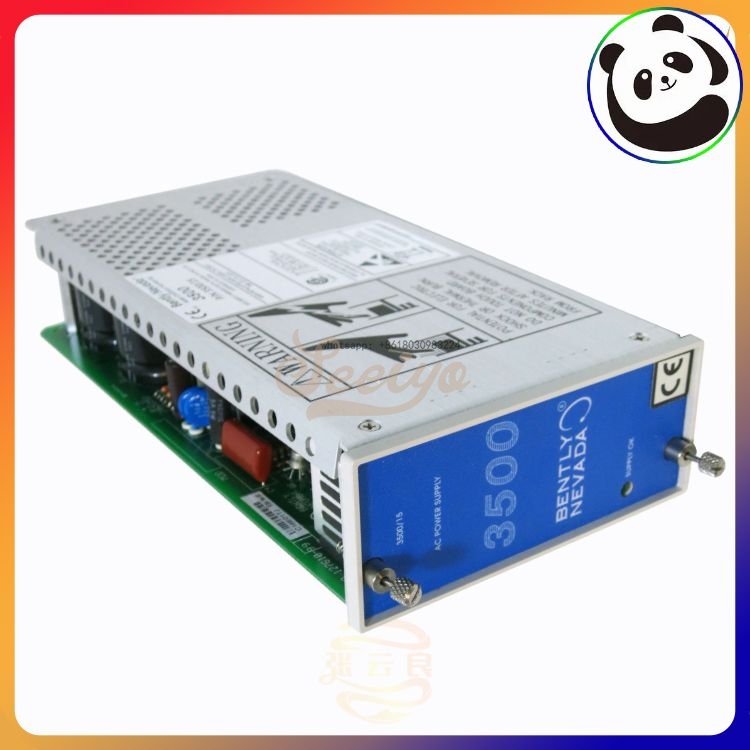

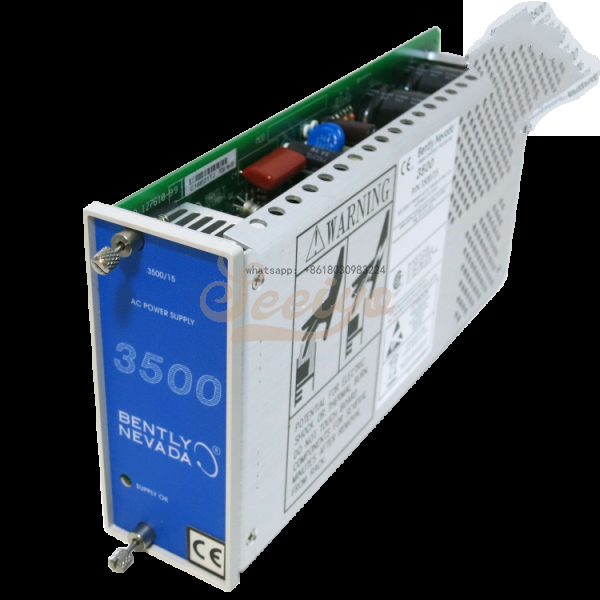

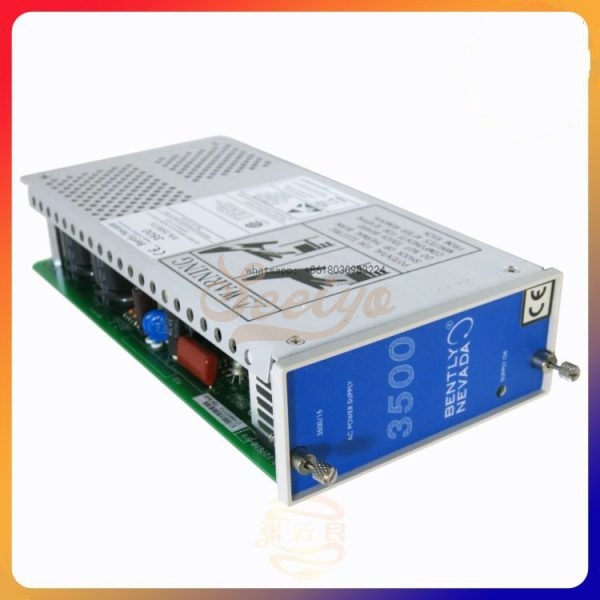

BENTLY NEVADA 3500/15 POWER MODULE

Description

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

BENTLY NEVADA 3500/15 POWER MODULE 3500-15-A00-B00-C00，The 3500 system has dual power supplies to ensure stable and continuous operation of the system. Each power supply can supply power for the system independently.

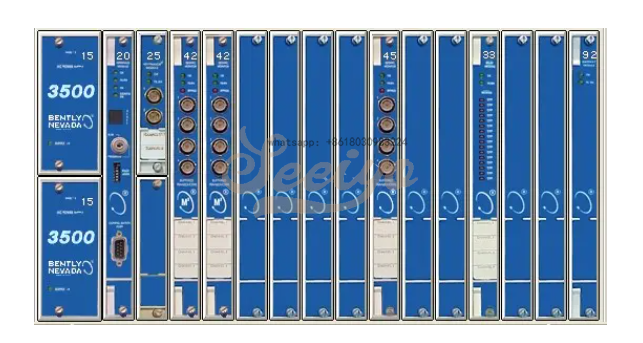

Bentley 3500 system is used for vibration monitoring and protection of large machinery. Bentley 3500 system must be equipped with frame 3500/05, power 3500/15, frame interface module 3500/22M.

bently3500 Bentley power high voltage AC 220V, spare parts as follows

127610-01 AC power module

125840-01 High-Voltage AC Power Input Module (PIM)

125840-02 Low-Voltage AC Power Input Module (PIM)

129486-01 High voltage DC power module

129478-01 High Voltage DC Power Input Module (PIM)

133292-01 Low voltage DC power module

133300-01 Low Voltage DC Power Input Module (PIM)

Spare fuse (two types of AC PIM and HVDC PIM)

01720045 Spare Fuse (Low voltage DC PIM)

129677-01 Power Operation and Maintenance manual

The order information and model of Bentley power supply bently 3500/15 are as follows:

3500/15-AXX-BXX-CXX option description

A: Power supply type (upper notch)

Low voltage AC (85-132 Vac rms)

02 High Voltage AC (175-264 Vac rms)

High voltage direct current (88-140 Vdc)

Low voltage DC (20-30 Vdc)

05 Universal AC Power Supply (85-264 Vac rms) (New)

B: Power supply type (lower notch)

No power supply (only used if single power supply is required)

Low voltage AC (85-132 Vac rms)

02 High Voltage AC (175-264 Vac rms)

High voltage direct current (88-140 Vdc)

Low voltage DC (20-30 Vdc)

05 Universal AC Power Supply (85-264 Vac rms) (New)

C: Approve the unit option

00 without

01 CSA/NRTL/C

02 ATEX/IECEx/CSA (Class 1, Zone 2)

CN China

Specific models are as follows:

3500/15 (front panel 127610-01, rear panel 125840-01)

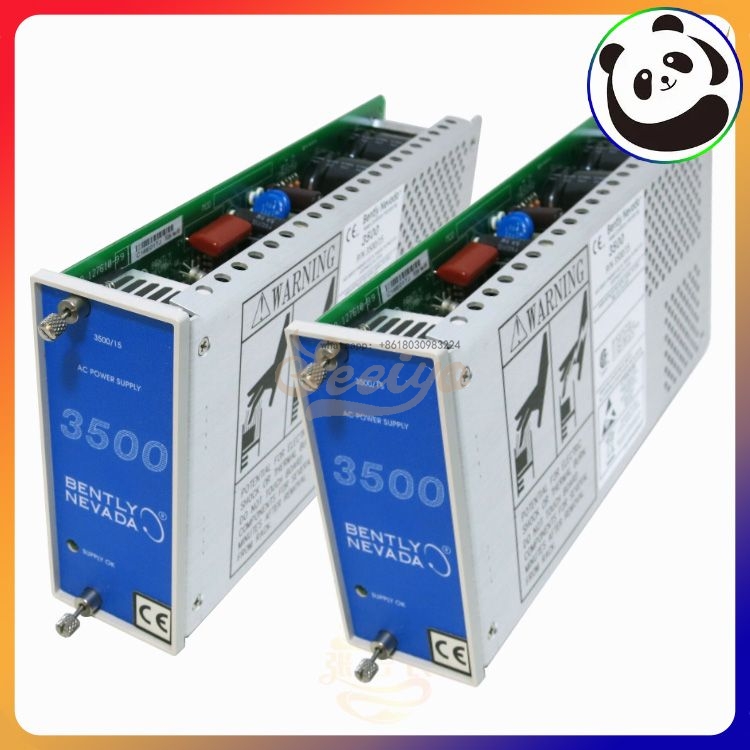

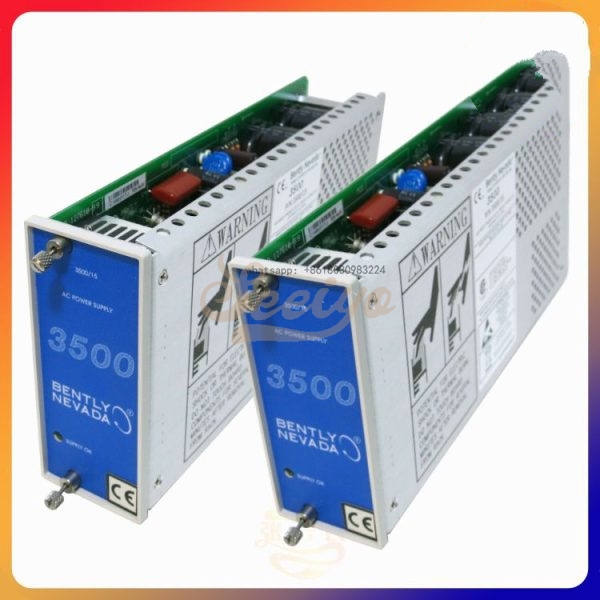

3500/15-02-02-00, upper notch and lower notch are installed, so dual power supply,

3500/15-02-00-00, upper notch is installed, lower notch is not installed, so it is a single power supply

3500/15-05-05-00, upper notch and lower notch are installed, so it is dual power supply

The following is the upgraded 3500/15 universal AC power module:

3500/15(106M1079-01 front panel, 106M1081-01 rear panel)

3500/15-05-05-00, upper notch and lower notch are installed, so it is a set of double power supply

3500/15-05-00-00, upper notch is installed, lower notch is not installed, so it is a set of single power supply

3500/15-05-05-cn (106m1079-01 * 2 + 106m1081-01 * 2) Product Type: 3500/15 USA made electric supply. A CO (CEPA) Power Supply Type can be added (top slot) : 05 = Universal AC voltage (85 to 264 volts AC RMS) Power Supply Type (bottom slot) : 05 = General AC voltage (85 to 264 volts RMS) cn = Approved country specific (cn Options Quick Reference Guide and field notification letter in the download section) Operating Temperature :-30 °c to + 65 °c Storage Temperature :-40 °c to + 85 °c Condensation: 95%
